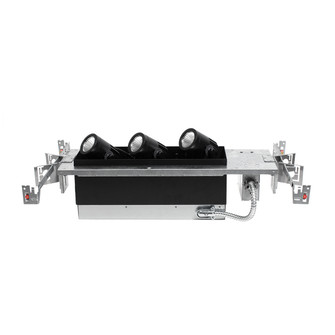

WAC Lighting LED Housing with Light Engine by W.A.C. Lighting from the Precision collection in Black finish WAC Precision Multiples are discreet and aesthetically stunning, delivering up to 1,100 lumens per head of high precision adjustable accent lighting. State-of-the-art Energy Star Compliant LED technology offers superb, color-consistent light with efficacies of up to 70lm/W from just 16 watts per head. The extremely efficient optical system provides superior beam control and adjustment, putting the right amount of light in precisely the right places. Single, two, three, four, and 2X2 light options available in IC or Non-IC rated new construction configurations. Precision luminaires accept up to 1 lens accessory, adjusting up to 360° horizontally, with a range of 180° vertical adjustment and are fully retractable from the housing. Trims are available in flanged or Invisible Trim options. Trim and housing are sold separately {ADDITIONAL FINISH INFORMATION: Black}
Characteristics and Features
FAMILY:
PRECISION
STANDARD STYLE:
TRADITIONAL
IMAGE INFO:
ACTUAL
BEAM SPREAD:
20.00
CRI:
90
LIGHT OUTPUT:
2850.00LM
LIGHT SOURCE:
LED
MATERIAL:
DIE-CAST ALUMINUM HEAD WITH ROTATABLE FRONT FACE. STEEL HOUSING AND TRIM.
RATED AVERAGE LIFE:
50000H
UL LISTED:
ETL CETL
UL RATING:
UL CUL
Dimensions & Measurements
HEIGHT:
6.00
HEIGHT RANGE:
0-15''
WIDTH:
7.13
WIDTH RANGE:
0-15''
EXTENSION:
23.13
Electrical Specifications
NUMBER OF BULBS:
3
BULB TYPE:
MODULE
BULB BASE:
LED MODULE
VOLTAGE:
120.00
MAX WATTAGE:
15.00
Included Components
Warranty and Product Information
INSTALLATION SHEET:
CLICK HERE
MANUFACTURER WARRANTY:
5 YEAR FUNCTIONAL 2 YEAR FINISH
PARTS DIAGRAM:
CLICK HERE
Product Availability
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
QUANTITY AVAILABLE AT MANUFACTURER:
224
Shipping Information
SHIP WEIGHT:
12.79LB
BOX SIZE:
10.60 X 8.50 X 27.30
