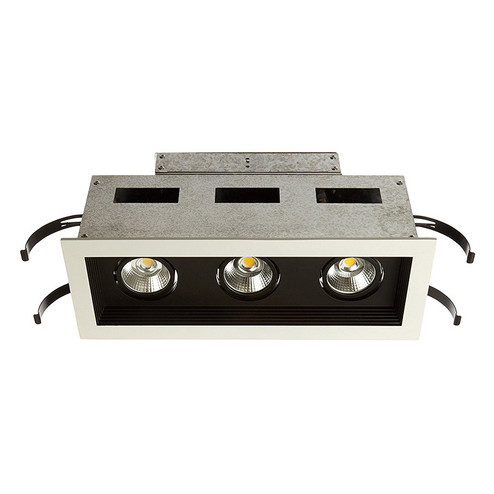

WAC Lighting LED Three Light Remodel Housing with Trim and Light Engine by W.A.C. Lighting from the Mini Led Multiple Spots collection in Black finish Miniature LED multiple spots provide a modern and aesthetically pleasing alternative to track or standard recessed installations. Available in one to three light configurations, with both new construction and remodel options for installation. Each lamp in the Multiple Spots configuration is individually Adjustable from 0° to 25° vertical and 350° horizontal providing a precise area of coverage from each lamp. {ADDITIONAL FINISH INFORMATION: Black}
Characteristics and Features
FAMILY:
MINI LED MULTIPLE SPOTS
STANDARD STYLE:
TRANSITIONAL
IMAGE INFO:
ACTUAL
BEAM SPREAD:
25.00
CRI:
90
LIGHT OUTPUT:
2982.00LM
LIGHT SOURCE:
LED
MATERIAL:
DIE-CAST ALUMINUM HEAT SINK PAINTED BLACK. TRIM HOUSING AND JUNCTION BOX ARE 20 GAUGE STEEL. FRAME AND HANGER BARS ARE HEAVY GAUGE GALVANIZED STEEL
RATED AVERAGE LIFE:
50000H
UL LISTED:
ETL CETL
UL RATING:
UL CUL
Dimensions & Measurements
HEIGHT:
5.13
HEIGHT RANGE:
0-15''
WIDTH:
8.63
WIDTH RANGE:
0-15''
EXTENSION:
23.00
Electrical Specifications
NUMBER OF BULBS:
3
BULB TYPE:
MODULE
BULB BASE:
LED MODULE
VOLTAGE:
120.00
MAX WATTAGE:
11.00
Included Components
Warranty and Product Information
MANUFACTURER WARRANTY:
5 YEAR FUNCTIONAL 2 YEAR FINISH
PARTS DIAGRAM:
CLICK HERE
Product Availability
ON DISPLAY IN SHOWROOM:
No
IN STOCK IN SHOWROOM:
No
QUANTITY AVAILABLE AT MANUFACTURER:
66
Shipping Information
SHIP WEIGHT:
3.31LB
BOX SIZE:
4.03 X 2.80 X 10.24
